Carbon steel machining services support strong, cost-efficient, and production-ready components for industrial equipment, automotive systems, energy hardware, fixtures, tooling, shafts, brackets, and structural mechanical assemblies. Our capabilities cover precision CNC machined carbon steel parts, prototypes, low-volume runs, and repeat production for both small components and large workpieces.

CNC Carbon Steel Machining Capabilities

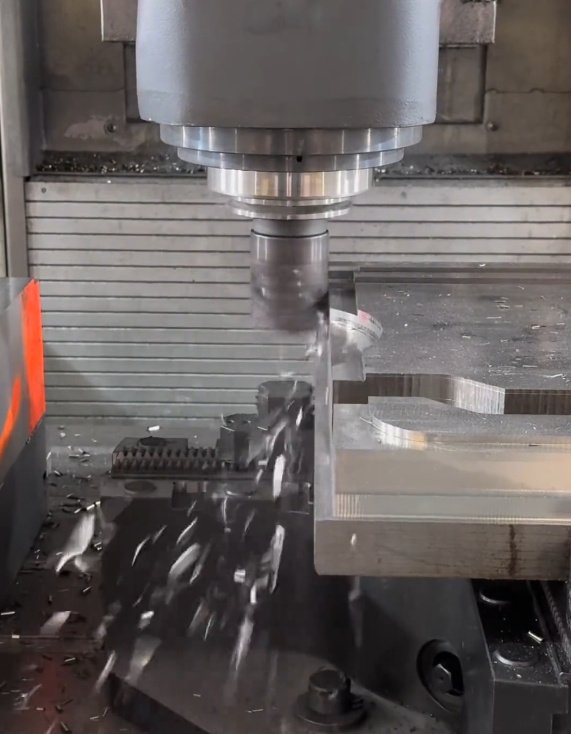

Carbon Steel CNC Machining Capabilities

Whether your project requires carbon steel CNC turning, CNC milling, drilling, boring, threading, tapping, grinding, heat treatment coordination, or post-machining finishing, carbon steel offers an excellent balance of machinability, strength, weldability, availability, and cost. For buyers searching for carbon steel cnc machining or cnc carbon steel machining, the core requirement is usually clear: reliable parts, controlled tolerances, stable delivery, and documentation that can support real engineering use. Carbon steel is widely used because it can be machined into complex parts while maintaining mechanical strength and dimensional stability. Our machining approach is based on material grade, part geometry, tolerance stack-up, hardness, heat treatment condition, and final application.

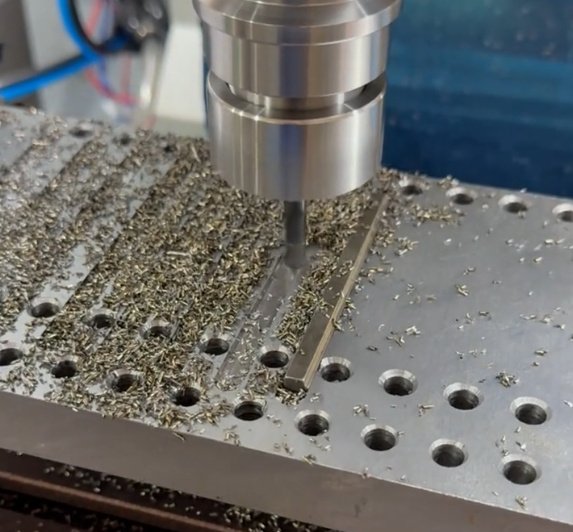

Precision Milling

Multi-axis CNC milling for complex geometries.
Tight tolerances as tight as ±0.002mm and fine surface finishes.
Suitable for prototypes and mass production.

CNC Turning

High-speed turning for shafts, rods, and cylindrical parts.
Thread cutting, grooving, and facing operations.
Supports both small and large batch production.

Drilling, Tapping & Boring

CNC drilling for holes of all sizes and depths.
Threading and tapping for assemblies.
High repeatability for precision alignment.

Multi-Axis Machining

4-axis and 5-axis machining for intricate parts.
Reduced setups and improved accuracy.
Ideal for aerospace, automotive, and medical components.

Secondary Operations

Deburring, grinding, tapping, honing, keyways, broaching support.
Specialized processes for hard-to-machine metals.
Used when critical surfaces, fit, or assembly requirements exceed standard machining

CNC Prototyping

Rapid CNC prototyping to test designs quickly.
Small batch to full-scale production runs.
Flexible workflow to meet tight deadlines.

Surface Treatment

Surface Finishing and Post-Processing Options

Carbon steel is strong and economical, but it can corrode if left unprotected. Machined carbon steel parts often require surface finishing based on operating environment, cosmetic requirements, friction, wear, and assembly function.

Black oxide: Common for mild corrosion resistance and dark appearance with minimal dimensional change.
Zinc plating: Provides improved corrosion protection for brackets, fasteners, and mechanical components.
Phosphate coating: Used for wear-in, oil retention, and corrosion resistance in industrial applications.
Painting or powder coating: Suitable for large carbon steel parts, frames, covers, and exposed equipment components.
Heat treatment: Can improve hardness, strength, and wear resistance for medium or high carbon steels.
Grinding: Used when tighter size control, roundness, or surface finish is required after CNC machining.
Protective oil: Short-term rust prevention for parts shipped or stored before assembly.

Carbon Steel Grades

Carbon Steel Grades We Machine

Different carbon steel grades machine differently. Low carbon steels are generally easier to weld and form, while medium and high carbon steels provide greater hardness and wear resistance after heat treatment. Selecting the correct grade affects tool life, cutting parameters, surface finish, distortion risk, and part cost.

Material Grade	Type	Machining Characteristics	Common Uses
AISI 1018	Low carbon steel	Good machinability, weldability, and dimensional control	Shafts, pins, spacers, mounting blocks, fixtures
AISI 1020	Low carbon steel	Balanced strength and machinability; suitable for general-purpose parts	Brackets, structural parts, plates, couplings
AISI 1045	Medium carbon steel	Higher strength; may require more controlled feeds and tool selection	Gears, shafts, rollers, machine components
AISI 1050 / 1060	Medium to high carbon steel	Higher hardness potential; heat treatment planning is important	Wear plates, blades, mechanical drive parts
A36	Structural carbon steel	Cost-effective and available in plates and shapes; variable machinability by lot	Base plates, frames, weldments, large machined structures
12L14 / 1215	Free-machining carbon steel	Excellent chip breaking and high productivity; limited weldability for some grades	High-volume turned parts, fittings, fasteners, inserts

Material selection notes for carbon steel machined parts

For parts requiring weldability and moderate strength, 1018, 1020, and A36 are common choices. For shafts, rollers, and mechanical transmission parts that require higher strength or wear resistance, 1045 and 1050 may be preferred. For high-volume screw-machined components, 12L14 or 1215 can reduce cycle time and tool wear, but application limits such as weldability, lead content, and regulatory requirements should be reviewed before selection.

Precision Carbon Steel Parts

Precision CNC Machined Carbon Steel Parts

Precision carbon steel machining requires more than cutting metal to shape. It involves material condition control, fixturing, cutter geometry, cutting heat management, inspection planning, and understanding how carbon steel responds to internal stress. For tight-tolerance carbon steel components, we evaluate part geometry and critical dimensions before production begins.

Typical achievable tolerances depend on material, part size, geometry, and inspection method. As a practical machining reference, many carbon steel parts can be produced to general CNC tolerances around ±0.005 in or ±0.13 mm. Precision features may be held tighter, such as ±0.001 in or ±0.025 mm, when the part design, setup, machine condition, and inspection environment support it.

Feature Type	Typical Machining Target	Factors That Affect Results
Turned outside diameter	±0.001 to ±0.003 in	Length-to-diameter ratio, material hardness, tool wear, live center support
Bored inside diameter	±0.0015 to ±0.005 in	Bore depth, tool deflection, chip evacuation, finish requirement
Milled flatness	Application-dependent	Part size, residual stress, stock removal balance, clamping pressure
Hole position	Per drawing GD&T	Datum strategy, setup count, fixture repeatability, inspection equipment
Threaded features	Class fit per specification	Thread form, tapping depth, lubrication, heat treatment condition

Large Carbon Steel Parts

Large Carbon Steel Machined Parts

Large carbon steel machined parts require a different process strategy than small precision parts. Size, weight, stress relief, stock condition, and handling method all affect final accuracy. In large plates, weldments, frames, and bases, dimensional movement can occur after roughing because internal stresses are released as material is removed.

For large carbon steel machined parts, the machining plan may include rough machining, stress-relief treatment, semi-finishing, rest periods, and final finishing. This approach improves flatness, hole alignment, bearing surface quality, and repeatability across production lots.

Typical Large-Part Engineering Controls

Balanced material removal from opposite faces to reduce warping
Purpose-built fixtures to prevent clamping distortion
Datum machining strategy for repeatable inspection and assembly
Roughing and finishing separation when high flatness or parallelism is required
Crane, forklift, and lifting-point planning for safe handling of heavy components
Inspection using height gauges, CMM, laser measurement, bore gauges, and surface plates when applicable

Carbon Steel Machining Process

Carbon Steel CNC Machining Process

A stable process for carbon steel cnc machining starts with manufacturability review and ends with documented inspection. The actual process may vary based on the part, but the following workflow is common for production-quality components.

Drawing and CAD review: Check dimensions, tolerances, datum structure, surface finishes, threads, edge breaks, and notes.
Material confirmation: Verify grade, condition, bar or plate form, certification needs, and heat treatment requirements.
Process planning: Select turning, milling, drilling, boring, grinding, or combined operations.
Fixturing and workholding: Design setups that control vibration, deflection, and positional accuracy.
Rough machining: Remove bulk material while controlling heat, chip load, and stress release.
Semi-finishing and finishing: Machine critical features after the part is stable.
Deburring and edge control: Remove sharp edges and burrs that can affect assembly or safety.
Inspection: Verify critical-to-quality dimensions, GD&T callouts, threads, bores, and surface finish.
Finishing or protection: Apply black oxide, phosphate, zinc plating, oiling, painting, or other corrosion-control methods when specified.

DFM considerations before machining carbon steel

Carbon steel designs are easier to machine when deep pockets include generous corner radii, thin walls are supported, hole depths are realistic, and tolerances are applied only where function requires them. A tolerance such as ±0.0005 in on a non-critical face can increase cost significantly, while the same tolerance on a bearing fit may be fully justified. Early DFM review helps reduce machining time, scrap risk, and inspection complexity.

Unique Materials

0 +

Customer satisfaction Rate

0 /100

Parts Produced

0 Million

CNC Carbon Steel Machining Challenges and Solutions

CNC carbon steel machining can be highly efficient, but the material presents challenges depending on grade and part shape. Low carbon steel may produce long, stringy chips, while medium carbon steel can generate more heat and tool wear. Large workpieces may move after roughing. Thin components may distort under clamping pressure.

Engineering Issue	Why It Happens	Machining Solution
Long chips in low carbon steel	Ductile material behavior and insufficient chip breaking	Use chip-breaker inserts, optimized feed rate, coolant, and interrupted tool paths when needed
Part distortion after roughing	Residual stress release in bar, plate, or flame-cut stock	Use stress relief, rough/semi-finish/final process, and balanced machining
Poor surface finish	Built-up edge, vibration, tool wear, or unstable fixturing	Adjust speed, feed, insert grade, nose radius, coolant flow, and workholding rigidity
Thread quality variation	Tool wear, chip packing, misalignment, or hard material condition	Use thread milling, forming or cutting taps as appropriate, and thread gauges for verification
Hole straightness problems	Deep drilling deflection and poor chip evacuation	Use pilot holes, peck cycles, gun drilling support, boring, or reaming based on tolerance

Example: Improving Repeatability on a Carbon Steel Shaft

A production shaft made from 1045 carbon steel required several turned diameters, a concentric bore, keyway, and threaded end. The original process used multiple setups and produced variation in runout and shoulder location. The engineering goal was to improve repeatability without changing the functional design.The process was revised by turning the main datum diameters in one setup, adding controlled center support, separating roughing and finishing passes, and inspecting the key features before milling the keyway. The result was a more stable setup and reduced rework risk.

Measured Item	Before Process Review	After Process Review
Diameter variation across batch	Up to 0.004 in	Within 0.0015 in
Runout at critical diameter	0.003 to 0.005 in	Typically below 0.002 in
Rework rate	Approximately 8%	Below 2%
Primary improvement	Reactive correction	Controlled datum-based machining plan

Quality Control for Carbon Steel Machined Components

Quality control for carbon steel components should match the function of the part. A simple spacer may only require dimensional checks, while a shaft, housing, or machine base may require full inspection of critical features, material documentation, and surface finish verification.Our inspection planning focuses on process capability and traceability. Critical dimensions can be checked with calibrated micrometers, bore gauges, height gauges, thread gauges, CMM inspection, surface roughness testers, and hardness testing when required by the drawing.

Typical inspection documentation available for carbon steel parts

Inspection documentation may include first article inspection, dimensional reports, material certificates, heat treatment certificates, plating or coating certificates, hardness readings, thread gauge results, and production inspection records. Documentation level should be defined before production to avoid delays and ensure the part meets purchasing and engineering requirements.

Industries and Applications

Carbon steel machined parts are used across industries because the material is accessible, strong, and adaptable to multiple manufacturing routes. The same project may combine CNC machining with welding, heat treatment, grinding, coating, and assembly.

Industrial machinery: mounting plates, housings, guides, rollers, shafts, machine bases
Automotive and transportation: brackets, bushings, spacers, pins, linkage parts, drivetrain components
Energy and power equipment: flanges, couplings, supports, valve-related components, heavy-duty hardware
Construction and lifting equipment: structural plates, pins, blocks, weldment-machined parts
Tooling and fixtures: jigs, nests, clamps, locating blocks, inspection fixtures
Agricultural equipment: shafts, hubs, brackets, wear components, pivot parts

Why Carbon Steel Is Often Chosen for CNC Machining

Carbon steel remains one of the most practical materials for machined components. It is widely available in bar, plate, tube, and forged forms, and it can be processed with mature machining methods. Compared with stainless steel, many carbon steels are easier to machine and lower in cost. Compared with aluminum, carbon steel provides greater strength and wear resistance, though at higher weight and with greater corrosion-control requirements.

Selection Factor	Carbon Steel Advantage	Design Consideration
Cost	Generally economical for both prototypes and production	Finishing may be required for corrosion protection
Strength	Good mechanical performance, especially in medium carbon grades	Heat treatment may affect distortion and final machining sequence
Machinability	Many grades machine efficiently with proper tooling	Grade selection strongly affects chip control and tool life
Availability	Commonly stocked in many shapes and sizes	Large plates and flame-cut stock may contain residual stress
Finish options	Compatible with plating, coating, black oxide, phosphate, and painting	Finish thickness and masking requirements should be specified early

Design Information Needed for Accurate Carbon Steel Machining

Accurate pricing and manufacturing planning depend on complete technical information. For cnc carbon steel machining projects, the most useful inputs are a 2D drawing, 3D CAD model, material grade, quantity, finish requirements, inspection requirements, and any assembly-critical features.

2D drawing with tolerances, datum references, GD&T, threads, and surface finish callouts
3D CAD file such as STEP, IGES, Parasolid, or native CAD format
Carbon steel grade and material condition, such as hot rolled, cold drawn, normalized, or heat treated
Required quantity, delivery schedule, and batch release plan
Surface treatment, corrosion protection, masking, or post-machining coating requirements
Inspection level, first article needs, material certification, and critical-to-function dimensions
Packaging requirements to protect machined surfaces and prevent rust during shipment

Carbon steel machining is most successful when material selection, tolerance strategy, workholding, cutting process, and inspection plan are aligned before production. With the right process controls, carbon steel can deliver durable, accurate, and cost-effective machined components for demanding mechanical applications.
