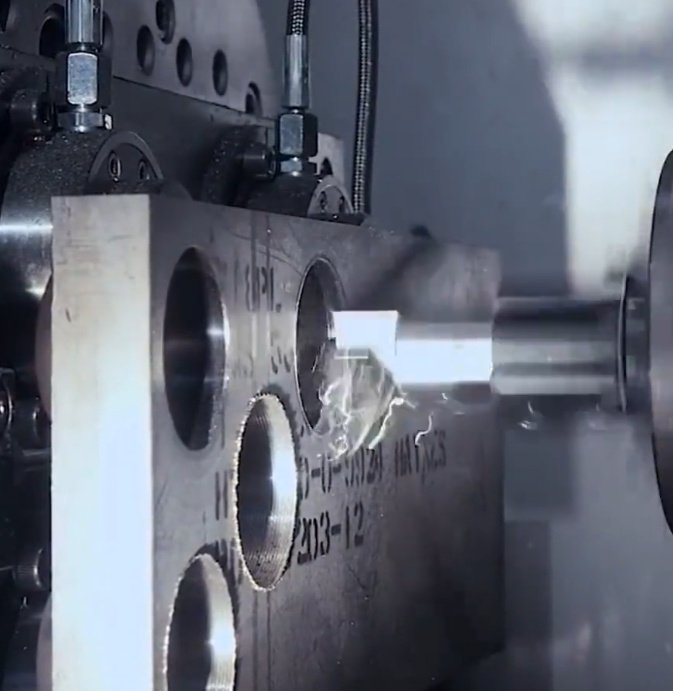

Inconel Machining Services

Inconel machining services support the production of high-performance nickel alloy components used in aerospace, energy, marine, chemical processing, defense, medical, and oil and gas applications. Inconel alloys are selected for excellent corrosion resistance, oxidation resistance, creep strength, fatigue resistance, and mechanical stability at elevated temperatures. However, these same properties make Inconel difficult to machine without the right CNC process, tooling, coolant strategy, and inspection plan.

CNC Inconel Machining Capabilities

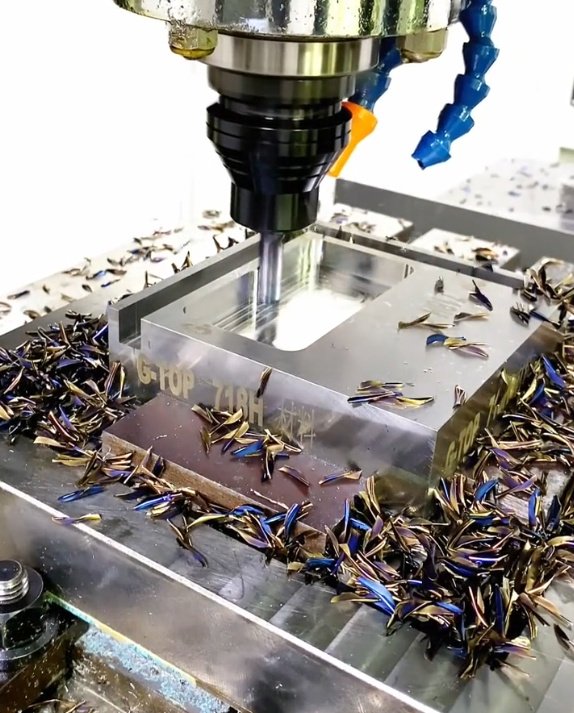

Inconel CNC Machining Capabilities

Common Inconel CNC machining processes include 3-axis milling, 4-axis milling, 5-axis machining, CNC turning, mill-turn machining, boring, reaming, grooving, parting, drilling, thread milling, tapping, broaching alternatives, wire EDM, sinker EDM, grinding, and final deburring. Inconel components often combine complex geometry with demanding mechanical requirements. Machining capability must address not only part shape but also repeatability, surface integrity, burr control, and inspection traceability. Typical project requirements may include tolerances from ±0.005 in to ±0.001 in depending on geometry, feature size, datum structure, wall thickness, and inspection method. For metric drawings, common CNC-machined Inconel tolerances may range from ±0.13 mm to ±0.005 mm, with tighter tolerances evaluated by feature and production volume.

Precision Milling

Multi-axis CNC milling for complex geometries.
Tight tolerances as tight as ±0.002mm and fine surface finishes.
Suitable for prototypes and mass production.

CNC Turning

High-speed turning for shafts, rods, and cylindrical parts.
Thread cutting, grooving, and facing operations.
Supports both small and large batch production.

Drilling, Tapping & Boring

CNC drilling for holes of all sizes and depths.
Threading and tapping for assemblies.
High repeatability for precision alignment.

Multi-Axis Machining

4-axis and 5-axis machining for intricate parts.
Reduced setups and improved accuracy.
Ideal for aerospace, automotive, and medical components.

Secondary Operations

Deburring, grinding, tapping, honing, keyways, broaching support.
Specialized processes for hard-to-machine metals.
Used when critical surfaces, fit, or assembly requirements exceed standard machining

CNC Prototyping

Rapid CNC prototyping to test designs quickly.
Small batch to full-scale production runs.
Flexible workflow to meet tight deadlines.

Prototype or Production

Prototype and Production Inconel Machining

Prototype Inconel machining focuses on proving geometry, material behavior, assembly fit, and inspection methods. Production machining focuses on repeatability, cycle time, tool life management, process control, and documented quality. A successful production process usually includes stable fixturing, defined tool change intervals, in-process probing or inspection, controlled finishing allowance, and repeatable deburring.

For small batches, CNC programming flexibility and setup planning may be more important than maximum material removal rate. For production quantities, toolpath optimization, coolant delivery, insert indexing strategy, and statistical process control can reduce cost per part while protecting critical dimensions.

Inconel Grades

Common Inconel Grades We Machine

Different Inconel grades behave differently during machining. Some are solid-solution strengthened, while others are precipitation hardened. Grade selection affects tool life, chip formation, heat generation, cutting forces, and post-machining stability.

Inconel Grade	Typical Applications	Machining Considerations
Inconel 625	Marine hardware, chemical equipment, valve bodies, manifolds, subsea components	Excellent corrosion resistance; gummy chip behavior; requires sharp carbide and strong coolant flow
Inconel 718	Aerospace brackets, turbine parts, fasteners, oilfield components, high-strength shafts	Inconel 718 is precipitation hardened and maintains strength at high temperature; tool wear and notch wear must be controlled
Inconel 600	Heat-treat fixtures, furnace components, chemical processing parts	Good oxidation resistance; tends to work harden if feeds are too light
Inconel 601	Thermal processing equipment, combustion systems, radiant tubes	High oxidation resistance; heat control is critical during long cuts
Inconel X-750	Springs, fasteners, turbine components, high-temperature structural parts	High strength after heat treatment; requires stable clamping and careful toolpath planning
Inconel 725	Oil and gas components, sour service equipment, marine fasteners	High strength and corrosion resistance; drilling and threading need controlled peck cycles and coolant pressure

Machining Solutions

Machining Strategy: Tooling, Speeds, Feeds and Coolant

Productive Inconel machining depends on balancing tool life, cycle time, dimensional accuracy, and surface integrity. The exact parameters depend on the grade, hardness, heat treatment condition, tool diameter, tool coating, machine rigidity, coolant delivery, and part geometry. In general, Inconel is machined at lower surface speeds than carbon steel, stainless steel, or aluminum, but with enough feed to prevent rubbing.

Cutting Tools

Carbide tooling is commonly used for milling, turning, drilling, and threading Inconel. Tool grades with heat-resistant coatings such as AlTiN, TiAlN, or advanced PVD coatings are frequently selected. Edge preparation must be controlled: too sharp may chip, while too honed may increase cutting pressure. Ceramic tools can be used in specific high-speed rough turning applications, but they are not suitable for every setup or interrupted cut.

Coolant and Chip Control

Flood coolant or high-pressure coolant is used to remove heat, improve chip evacuation, and reduce built-up edge. For turning and drilling, high-pressure coolant can significantly improve tool life when directed at the cutting edge. In deep holes, poor chip evacuation may cause drill failure, oversize holes, poor surface finish, or tool breakage.

Typical Parameter Ranges

The following ranges are general starting points for discussion, not universal settings. Final parameters should be validated by part geometry, tool supplier data, machine condition, and inspection results.

Operation	Common Tooling	Typical Strategy	Key Risk
Rough milling	Coated carbide end mills, indexable cutters	Moderate depth of cut, stable engagement, constant chip load	Chatter, notch wear, heat concentration
Finish milling	Sharp coated carbide, ball end mills, corner radius end mills	Consistent finishing allowance and minimal tool deflection	Dimensional drift and surface tearing
Turning	Coated carbide inserts, positive geometry where applicable	Rigid clamping, controlled depth of cut, coolant aimed at edge	Notch wear and work-hardened skin
Drilling	Carbide drills, coolant-through drills	Short, stable tools with chip evacuation strategy	Chip packing, heat, hole oversize
Threading	Thread mills, carbide taps, single-point threading tools	Controlled engagement and verified thread gaging	Tap breakage and poor thread finish

Practical result: improving tool life in an Inconel 718 turning operation

In one representative turning setup for aged Inconel 718, replacing a general-purpose carbide insert with a heat-resistant coated insert, reducing radial engagement at the notch line, and directing high-pressure coolant to the cutting zone reduced insert changes from approximately every 8 parts to approximately every 15 parts. The measured benefit was a 40% to 50% reduction in tool-related downtime for that operation. Actual results vary by hardness, geometry, machine rigidity, and coolant pressure.

Unique Materials

0 +

Customer satisfaction Rate

0 /100

Parts Produced

0 Million

Why Inconel Is Difficult to Machine

Inconel is not difficult because of a single factor. It is difficult because several material behaviors occur at the same time. The alloy retains strength when hot, conducts heat poorly, wears tools aggressively, and can harden rapidly if the cutting edge rubs instead of shearing.

Work hardening: If feed per tooth or feed per revolution is too low, the tool can rub the surface and create a hardened layer that damages the next cutting edge.
Low thermal conductivity: Heat remains near the cutting zone instead of flowing into the chip or workpiece evenly, increasing crater wear and edge breakdown.
High cutting forces: Rigid machines, short tool overhang, strong workholding, and stable toolpaths are needed to reduce chatter.
Notch wear: Inconel often causes concentrated wear at the depth-of-cut line, especially in turning and shoulder milling.
Built-up edge: Poor chip evacuation or incorrect tool geometry can lead to material welding on the cutting edge.
Residual stress sensitivity: Aggressive machining, poor fixturing, or uneven stock removal may cause movement in thin-wall or heat-treated parts.

Engineering note: why rubbing is more damaging in Inconel than in free-machining alloys

In free-machining steels or aluminum, a short period of rubbing may reduce finish quality but may not immediately destroy the cutting edge. In Inconel, rubbing can rapidly harden the surface and increase local temperature. Once the tool re-enters that hardened layer, cutting force rises and tool wear accelerates. This is why many Inconel programs avoid extremely light finishing passes unless the tool is sharp, the setup is rigid, and the feed is sufficient to maintain a real chip.

Design for Manufacturability in Inconel CNC Parts

Design decisions have a large impact on cost, lead time, tool life, and risk. Inconel parts become more expensive when the drawing includes deep narrow pockets, very small internal radii, long thin walls, deep threaded holes, sharp internal corners, excessive surface finish requirements, or tight tolerances applied to non-critical features.

Use practical internal radii so end mills do not need to cut with excessive tool engagement.
Avoid unnecessarily deep pockets with small corner radii unless functionally required.
Specify tight tolerances only on functional interfaces, sealing faces, bearing fits, datum features, and assembly-critical geometry.
Allow reasonable wall thickness to reduce vibration, distortion, and heat-related movement.
Consider thread milling for expensive parts, large internal threads, difficult blind holes, and features where broken taps create high scrap risk.
Define surface roughness requirements clearly, such as Ra 32 µin, Ra 16 µin, Ra 0.8 µm, or application-specific sealing requirements.
Provide material condition, heat treatment, hardness range, grain direction if relevant, and any required material certifications.

When drawings require thin walls below 1.0 mm, deep slots with length-to-width ratios above 8:1, or true position tolerances below 0.05 mm, the machining plan may need custom fixturing, stress-relief sequencing, semi-finish operations, and in-process inspection.

Quality Control and Inspection for Inconel Machined Components

Inconel parts are often used in critical service environments, so inspection planning is an essential part of machining. A reliable quality plan identifies critical features, inspection frequency, measurement tools, acceptance criteria, and documentation requirements before production begins.

CMM inspection for datum relationships, true position, profile, flatness, perpendicularity, and complex geometry
Optical inspection for small features, edge conditions, engraved markings, and fine profiles
Thread plug gages, ring gages, pitch micrometers, and thread profile verification
Surface roughness measurement for sealing surfaces, sliding interfaces, and fatigue-sensitive areas
Hardness verification when required by specification or heat treatment condition
Material test reports for alloy traceability, including chemistry and mechanical properties where specified
First article inspection reports for aerospace, defense, energy, and regulated manufacturing requirements

Inspection should also verify burr removal and edge condition because small burrs on Inconel can be tough, sharp, and difficult to remove after assembly. For high-pressure, high-temperature, or corrosive service, surface defects, laps, tears, tool marks, and embedded foreign material may require additional review.

Inspection example: controlling bore size after heat generated by machining

A bored Inconel 625 sleeve with a tight internal diameter tolerance may measure within specification immediately after machining but shift after thermal equalization if inspected too soon. A stable process may require staged boring, rest time, temperature-controlled inspection, and final sizing with a sharp tool. This is especially important for thick-wall parts, high material removal rates, and precision fits below ±0.025 mm.

Industries and Applications

Inconel machined parts are used where common stainless steels or alloy steels cannot provide enough corrosion resistance, oxidation resistance, or strength at temperature. CNC machining is often selected for prototypes, low-volume production, replacement parts, repair components, and production runs where precision and traceability are required.

Industry	Common Machined Parts	Performance Requirement
Aerospace	Brackets, housings, turbine-related hardware, fasteners, bushings	High strength, heat resistance, fatigue resistance, traceability
Oil and Gas	Valve parts, couplings, downhole tools, seal retainers, connectors	Sour service resistance, pressure capability, corrosion resistance
Marine	Fasteners, shafts, pump components, seawater-exposed hardware	Chloride corrosion resistance and long service life
Chemical Processing	Nozzles, fittings, reactor hardware, heat exchanger components	Resistance to acids, oxidation, and aggressive chemicals
Power Generation	Combustion hardware, thermal shields, high-temperature fixtures	Oxidation resistance, creep strength, dimensional stability

Common Engineering Problems Solved in Inconel Machining

The most valuable Inconel machining support often occurs before chips are made. Reviewing the drawing, material condition, tolerance stack, and inspection requirements can prevent avoidable scrap.

Reducing distortion in thin-wall Inconel 625 parts by balancing roughing passes on opposite sides before final finishing
Improving hole quality in Inconel 718 by replacing conventional peck drilling with coolant-through carbide drilling and controlled chip evacuation
Preventing broken taps by using thread milling for blind holes, large internal threads, and expensive components
Controlling sealing surface finish by separating roughing, semi-finishing, and final finishing tools
Reducing chatter in long-reach milling by changing tool length, holder style, radial engagement, and toolpath strategy
Maintaining true position by machining datums early, using repeatable workholding, and verifying features with in-process inspection

Data point: thread milling versus tapping in high-value Inconel parts

For blind internal threads in Inconel 718 and 625, thread milling can reduce scrap risk because the tool is smaller than the final thread diameter and can usually be removed if wear or breakage occurs. Although cycle time may be longer than tapping, the method can be more economical when the part has high material value, long machining time before threading, or a strict no-rework requirement.

How to Specify an Inconel Machined Part

Clear specifications help reduce quoting uncertainty and improve manufacturing outcomes. A complete technical package should include the 3D model, 2D drawing, alloy grade, material condition, quantity, revision level, critical features, tolerances, surface finish, inspection requirements, and any industry standards that apply.

Alloy grade: Inconel 625, 718, 600, 601, X-750, 725, or another nickel alloy
Material condition: annealed, solution treated, aged, precipitation hardened, or customer-supplied stock
Dimensional tolerances and GD&T callouts, including datums and critical-to-function dimensions
Surface finish requirements for sealing, fatigue, cosmetic, or sliding surfaces
Thread standards such as UNC, UNF, UNEF, NPT, BSPP, metric coarse, metric fine, or custom thread forms
Inspection documentation such as first article inspection, material certificates, CMM reports, or process records
Post-machining requirements such as cleaning, marking, edge break, heat treatment, coating, or packaging
